SVI(Switched Virtual Interface) Routing

SVI(Switched Virtual Interface)로 라우팅

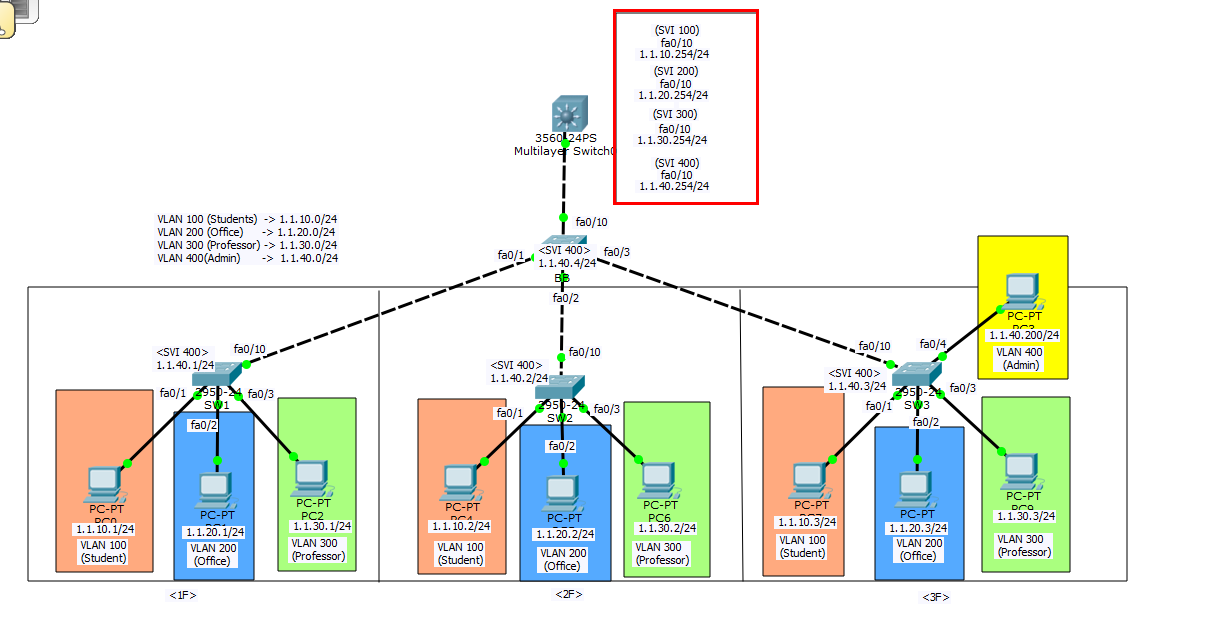

Network 구성도

SVI 100: 1.1.10.254/24

SVI 200: 1.1.20.254/24

SVI 300: 1.1.30.254/24

SVI 400: 1.1.40.254/24



-   각각의 VLAN을 SVI를 이용하여 통신되게 설정



백본 스위치 설정

트렁크(Trunk) 설정



BB(config)#int fastethernet 0/10 BB(config-if)#switchport trunk allowed vlan 100,200,300,400 BB(config-if)#switchport mode trunk BB(config-if)#switchport native vlan 100 BB(config-if)#switchport nonegotiate

L3스위치 설정



VLAN 등록



Switch(config)#vlan 100 Switch(config-vlan)#name Student Switch(config-vlan)#vlan 200 Switch(config-vlan)#name Office Switch(config-vlan)#vlan 300 Switch(config-vlan)#name Professor Switch(config-vlan)#vlan 400 Switch(config-vlan)#name Admin



트렁크(Trunk)설정



Switch(config)#int fastethernet 0/10 Switch(config-if)#switchport trunk allowed vlan 100,200,300,400 Switch(config-if)#switchport trunk encapsulation dot1q Switch(config-if)#switchport trunk native vlan 100 Switch(config-if)#switchport nonegotiate



IP등록



Switch(config)#int vlan 100 Switch(config-if)#ip add 1.1.10.254 255.255.255.0 Switch(config-if)#int vlan 200 Switch(config-if)#ip add 1.1.20.254 255.255.255.0 Switch(config-if)#int vlan 300 Switch(config-if)#ip add 1.1.30.254 255.255.255.0 Switch(config-if)#int vlan 400 Switch(config-if)#ip add 1.1.40.254 255.255.255.0



라우팅 기능 활성화



Switch(config)#ip routing



show ip interface brief 확인



Vlan100 1.1.10.254 YES manual up up Vlan200 1.1.20.254 YES manual up up Vlan300 1.1.30.254 YES manual up up Vlan400 1.1.40.254 YES manual up up



show ip route 확인



C 1.1.10.0 is directly connected, Vlan100 C 1.1.20.0 is directly connected, Vlan200 C 1.1.30.0 is directly connected, Vlan300 C 1.1.40.0 is directly connected, Vlan400



테스트

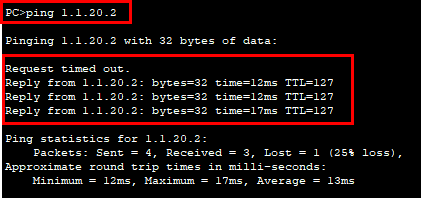

다른 VLAN으로 Ping Test



ping test
